Machine Tool Coolant Coalescers & Recycling Systems

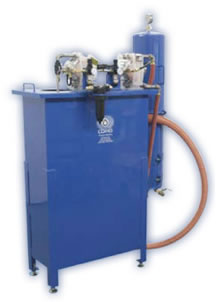

Photo of an Machine Tool Coolant Coalescers & Recycling System Unit.

During the machining process, contaminants and bacteria can foul the coolant causing it to "break down". Recycling coolant will decrease coolant disposal and replacement costs while extending coolant life and improving the wash quality.

The TS- Series tramp oil separator/coalescers are designed to remove tramp oil and coarse solids from machine tool coolant, wash water, or process water when the mixture is not chemically emulsified.

The coalescer works by first separating the oil droplets from the wash water or coolant. These small droplets are then attracted to the coalescing media where they accumulate and combine with other droplets until they are big enough to flow to the surface where they can be removed.

Coolant Coalescing/Separation Systems Flow GPM
Model TS-1V1
Model TS-3V3
Model TS-5V5
Model TS-10V10
Model TS-20-10020-100
Photo of an Machine Tool Coolant Coalescers & Recycling System Unit.

Standard Features

  • Air Diaphragm Pumps
  • Air Filter Regulator Assemblies & Needle Valves
  • CPVC Cleanable Coalesing Media
  • C-1000 Filter Housing
  • Bag Filter
  • Oil Gate Weir for Tramp Oil Removal
  • Optional 4" Wheels (2 Rigid and 2 Swivel)
  • Strainer
  • 5’ Discharge Hose, Gravity Flow back to Sump

For recycling larger batch volumes up to 600 gallons, the RTS Series Coolant Recycling systems will remove tramp oils and solids and return the clean coolant into a clean reservoir. After the clean reservoir fills, any oil which separates along with excess coolant overflows back into the dirty reservoir to be reprocessed. This flow cycle may be run as long as desired to achieve the required level of coolant cleanliness.

RTS Series Coolant Recycling Systems Capacity Gallons Flow Rate GPM
Model RTS-2502505
Model RTS-4504505
Model RTS-60060010

Standard Features

  • Progressive Cavity Pumps
  • Air Filter Regulator Assemblies & Needle Valves
  • CPVC Cleanable Coalesing Media
  • C-1000 Filter Housings
  • Bag Filter
  • Oil Gate Weir for Tramp Oil Removal
  • Strainer
